Shrediquette user builds

On this page I am showing the Shrediquette tricopters that other people built.

Please send some pictures/ movies and the specs of your personal build to
shrediquette@ g m x . d e

Thanks!
Dion
KDA20-22L Motors
10x4.5 MAXXProd Props
Turnigy Plush 25A ESC’s
I2C->PWM converters
Rec-Enc
2200 mAh Lipo – 10 minutes flight time
Turnigy MG90S Metal Gear Servo
3 mm Lite Ply laser cut
30 cm aluminium arms
AUW 850 gram




Eric



Guy

Hennie
Jürgen

Motors: Turnigy C2830-1050
Props: Maxxprod EPP1045
ESC: BL-Contr. V1.2
Servo: MKS DS450
Battery: Turnigy 3S 1800mAh
Chassis: 1,5mm GFK
RX: Jeti Duplex Rx easy Kopter 2,4GHz
Weight: 780g (incl. battery)

Laurent



Marcellus
Motors : Protronik 2810 kv1000
ESC : Protronik PM30A + your I²C->PWM converters
Battery : Protronik 3S 3300mAh 30C or 3S 2200mAh
Yaw servo : Protronik 6452 MG-A (Metal gear - Analogic)
Frame is made of 1.5mm carbon sheet + 10mm square carbon tubes. Yaw system is made of Polyamid by SLS (Synthetic Laser Synthering). It is designed to carry the GoPro HD for FPV purpose.

Noppita
I2C by William
Rx converter to single pulse signal (TT-RecEnc)
Rx corona 8 channel
Motor Scorpion 2212-26  * 3
ESC Hobbyking SS 18-20 amp *3
Prop: GWS 3 blades 8*4  ----------> 9*5 (more stable)
Servo Towerpro metal gear






Oguz

Pac3er
1.5mm PCB Glass Main Frame
Alloy HK250 Tail booms (1.5)
Alloy HK250 Tail Boom Supports (3)
Alloy HK250 Tail Fin mount
hexTronik 16g 1700kv
Turnigy Plush 10A
Turnigy 1000mah 20C 2S 7.4V Lipo
Seb (tazdevil)



Servop

Stefan

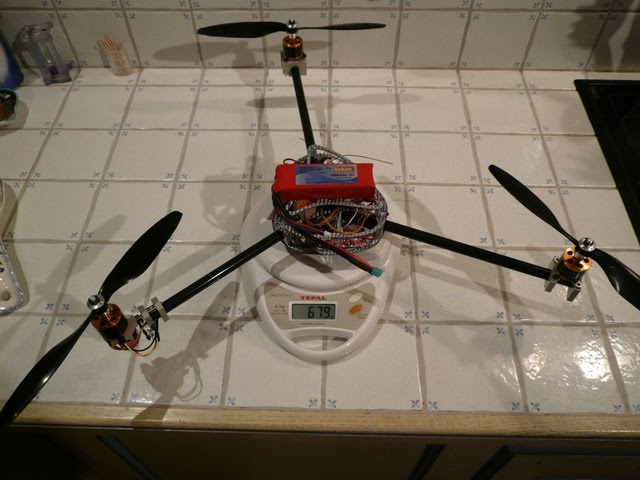

Sven
Chassis: Alu Selfmade
Controller: TriGUIDE mini v2 with external 3,3V Reference Modification
IMU: 6DOF Razor - Ultra-Thin IMU
Motors: Turnigy TR2830-1050
ESC: TowardPro w18A (2010) I²C Modification
Props: Maxxprod 10x4.5" / 8x4.5"
Servo: Bluebird BMS-371S
Reciever: Graupner R700 PPM Modification
Battery: Kokam 3s 3200mAh
Weight: ~ 900g

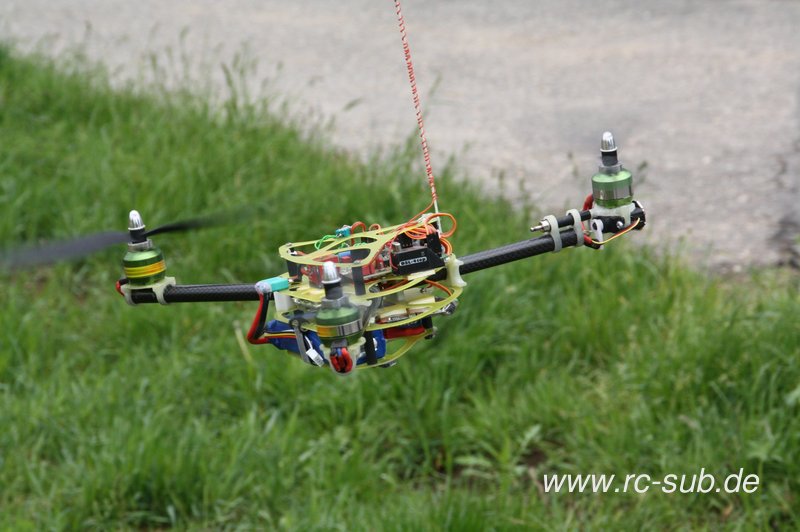

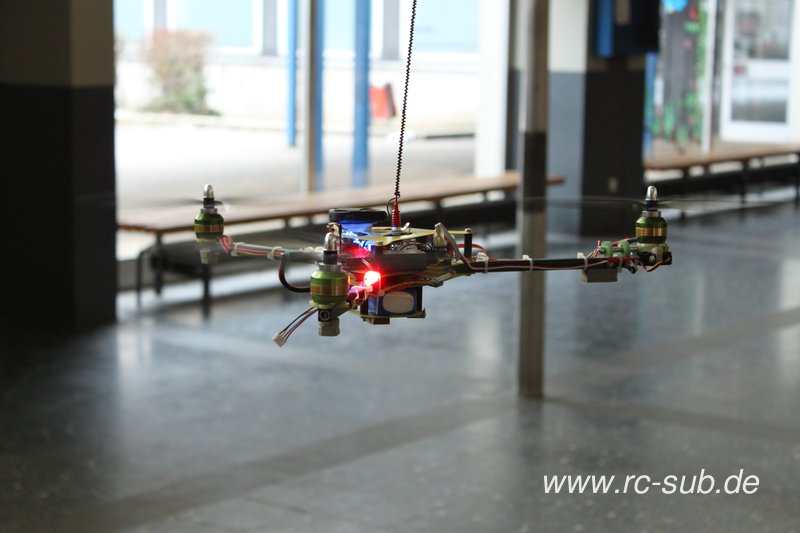

Sven (ssellere)

Controller: TriGUIDE mini v2, Atmega328p @ 16 MHz, 5V
Sensors: 3*ADXRS610, 1*ADXL322
Receiver: FlySky-Satellit + FlySky2PPM(Vorlage und QC auf qc-copter.de)
ESC:Hobbyking SS-Series 15-18A, I2C mod
Motors: FC28-22 1200kV
Servo: Bluebird BMS-371S
Props: GWS 3blade 8x4
Battery: Rhino 3s, 2250 mAh
Frame: GFK/cardboard Sandwich, aluminium tube 10x10mm
serial link: FTDI-USB Adapter von Watterrot
Distance motor - COG: 22cm
Weight: ~ 650g



Vincent

Lutz

Motors: Turnigy C2830-1050
Props: Maxxprod EPP1045
ESC: TowardPro 18A (Version 2009) auf I2C umgebaut
Servo: MKS DS450
Battery: Flightmax 3S 2200mAh 30C
Chassis: 1,5mm GFK
RX: Jeti Duplex Rx easy Kopter 2,4GHz
Weight: 850g (incl. battery)

Stergios
Carbon frame
Carbon booms
AX-2210N 1.000KV motors
Hobbyking SS series 25-30A ESC's
Paparazzi PPM encoder (i made the pcb, soldering and programming)
Your I2C->PWM encoders (i made the pcb, soldering and programming)
GWS HD9050RX3 (2pcs) + HD9050x3 (1pc) prop's
BMS-385DMAX metal gear tail servo
Corona 2.4GHz V2 DSSS receiver
Corona 2.4GHz JR TX module
3s, 2200mAh, 20c battery
860gr weight

Ewald



Controller: TriGUIDE, Atmega328p 16 MHz, 5V
Receiver: ACT Micro8 DSQ
ESC: Mystery Pentium 30A, I2C mod
Motors: CF2822 1200kV
Servo: Graupner C261
Props: EPP 1045
Battery: Dymond Lipo 3S 1350
Frame: CFK, aluminium tube 10x10mm
Weight: 720g

A.Mohamed Rasheed

ESCs: 6A -HK ESC
Motor: dys 2805-14 -- 1450kv
Prop: 5030gws
Battery: 3S-1500mAh
Frame: 1mm Glass Epoxy
all up weight: 400gms
Endurance: 8~10mins
Sean H.


TriGUIDE mini v2
LY530AL yaw gyro
LPR510AL nick&roll gyro
MMA7361L accelerometer
BM2410-9T motor
10x4.5 Maxxprod props
Towerpro 18amp esc reprogrammed for I2C
2200mah 3S
14min flight time
12mm carbon helicopter tail boom arms
.125inch laser cut Acrylic
820g AUR weight
Bluebird BMS-706 servo
custom design mechanism tilts all 3 rotors for yaw control


Zoltán


Frame:
PCB layers and carbon tubes. The spacers are made from PVC.
Motors:
RC Timer A2208-14 (1450 kV) + 8x4.5" props
RC Timer A2830-14 (750 kV) + 12" props
BL-controllers:
self made redesigned BL-Ctrl 1.2 (~10 A)
Radio:
Turnigy 9x 2.4 Ghz + self made RecEnc (idea: http://lea.hamradio.si/~s56wix/pwm2ppm/)
weight:
ca. 840g (with Turnigy 3s-2200 mAh)
